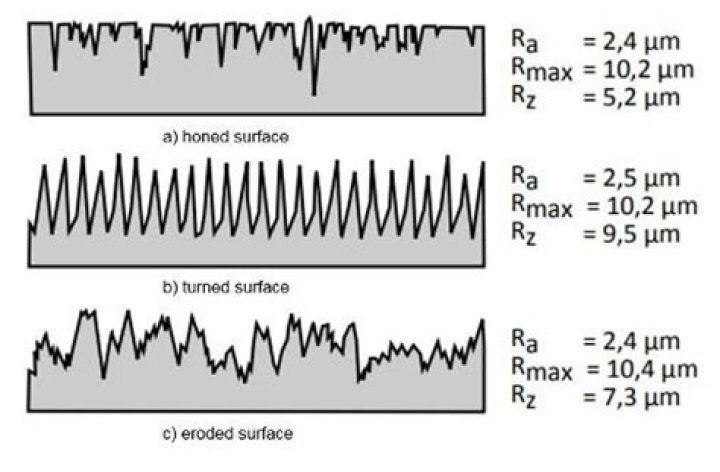

The Mean Roughness Depth (Rz) is the arithmetic mean value of the single roughness depths of consecutive sampling lengths. The Maximum Roughness Depth (Rmax) is the largest single roughness depth within the evaluation length. The units of Rz are micrometres or microinches.
What is RA value?
What Does Ra Mean? 1, Ra is the arithmetic average of the absolute values of the profile height deviations from the mean line, recorded within the evaluation length. Simply put, Ra is the average of a set of individual measurements of a surfaces peaks and valleys.
What is RA and RQ?
Roughness Average, Ra, is the arithmetic average of the absolute. values of the profile heights over the evaluation length. RMS Roughness, Rq, is the root mean square average of the. profile heights over the evaluation length.
What does RA mean in surface roughness?
Roughness Average
Different Ways of Measuring Roughness Surface roughness is calculated measuring the average of surface heights and depths across the surface. This measurement is most commonly shown as “Ra” for “Roughness Average” and that value is used to determine compliance of equipment with various industry standards.
How do you convert RZ to RA?
However, a conversion interval that contains all possible values can be specified. The rule of thumb that repeatedly emerges for converting Rz = Ra*7 does not go far enough and, based on the extensive scattering of values, can lead to bad surprises in practice.
Which is better Ra or RZ?
According to doctor blades manufacturer Swedev’s website, “Ra is the arithmetical average value of all absolute distances of the roughness profile from the center line within the measuring length. Rz is the average maximum peak to valley of five consecutive sampling lengths within the measuring length.
What is a 32 Ra finish?
Often referred to as the ‘workhorse finish,’ No. 4 Standard Satin Finish (32 Ra Max) is one of the most common finishes suitable for architectural and processing vessels. Consistent satin grain appearance satisfies strict sanitary requirements and is easily blendable.
What is the full form of RA tester?
A roughness tester is used to quickly and accurately determine the surface texture or surface roughness of a material. A roughness tester shows the measured roughness depth (Rz) as well as the mean roughness value (Ra) in micrometers or microns (µm).
How do you calculate Ra?
Ra is calculated as the Roughness Average of a surfaces measured microscopic peaks and valleys….That means you:
- Measure height across the microscopic peaks and valleys.
- Calculate the SQUARE of each measurement value.
- Calculate the MEAN (or average) of those numbers (squared).
- Find the square ROOT of that number.
What is RZ vs Ra?
Ra measures the average length between the peaks and valleys and the deviation from the mean line on the entire surface within the sampling length. Rz measures the vertical distance from the highest peak to the lowest valley within five sampling lengths and averages the distances.
What is a 20 Ra finish?
20 RA – 12 RA) #7 Finish. Smooth buffed finish with a very bright appearance. Light haze. The part is belt polished with a 280 – 320 belt then buffed with a cut and color compound.
What is a roughness gauge?
Surface roughness is an important parameter used to determine the suitability of a surface for a particular purpose. A roughness tester, also referred to as roughness gauge or roughness meter, is a portable device that is used to quickly and easily measure the surface roughness (surface finish) of an object.
What is the surface roughness symbol?
During the design process, surface roughness symbols indicate what is required and efficiencies can be made during the machining process. Surface roughness symbols are used to communicate the required surface texture of machined and structural parts and testing is done to ensure those requirement are met.
What is RA and RZ value?
What Ra is a mirror finish?
A smooth, shiny surface — a mirror finish — would produce an Ra measurement of around 6 to 12, while stainless-steel with a standard, brushed finish would likely produce a measurement of 20 to 30 Ra.
What is full form of RA tester?
What is unit of roughness?
Average roughness is typically measured in either microns (µm) or micro-inches (µ-in, µ”). One micron equals roughly 40 micro-inches (µ”). Also note that “micron” and “micrometer” are equivalent, and both terms are commonly used.
What is the symbol of flatness?
GD Flatness
GD Flatness is very straight forward. It is a common symbol that references how flat a surface is regardless of any other datums or features. It comes in useful if a feature is to be defined on a drawing that needs to be uniformly flat without tightening any other dimensions on the drawing.
Is a roughness tester?
A roughness tester, also referred to as roughness gauge or roughness meter, is a portable device that is used to quickly and easily measure the surface roughness (surface finish) of an object.
What are the 3 types of tolerances?
A tolerance is an acceptable amount of dimensional variation that will still allow an object to function correctly. Three basic tolerances that occur most often on working drawings are: limit dimensions, unilateral, and bilateral tolerances.
